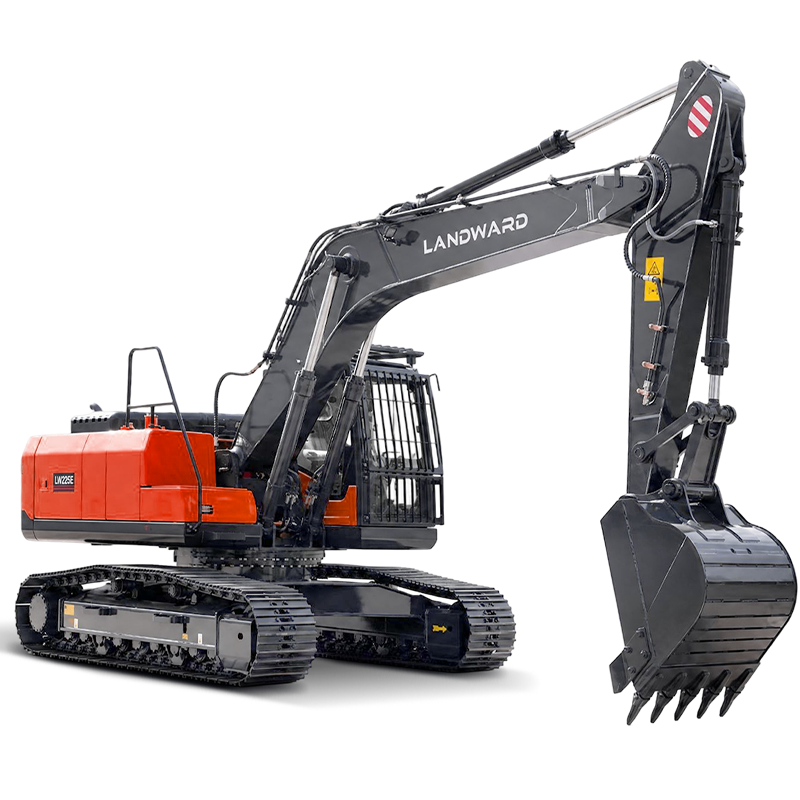

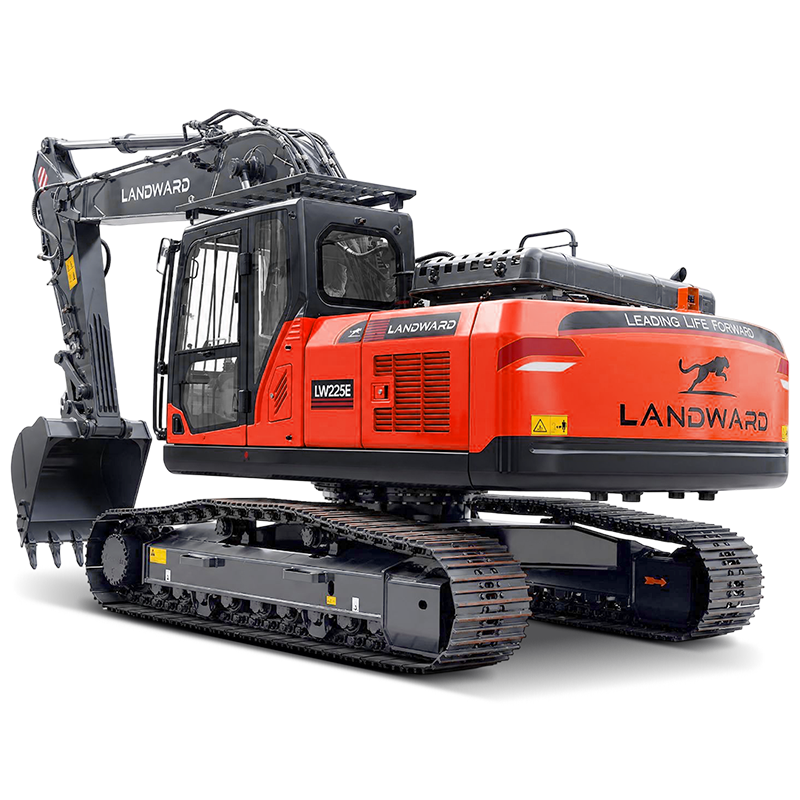

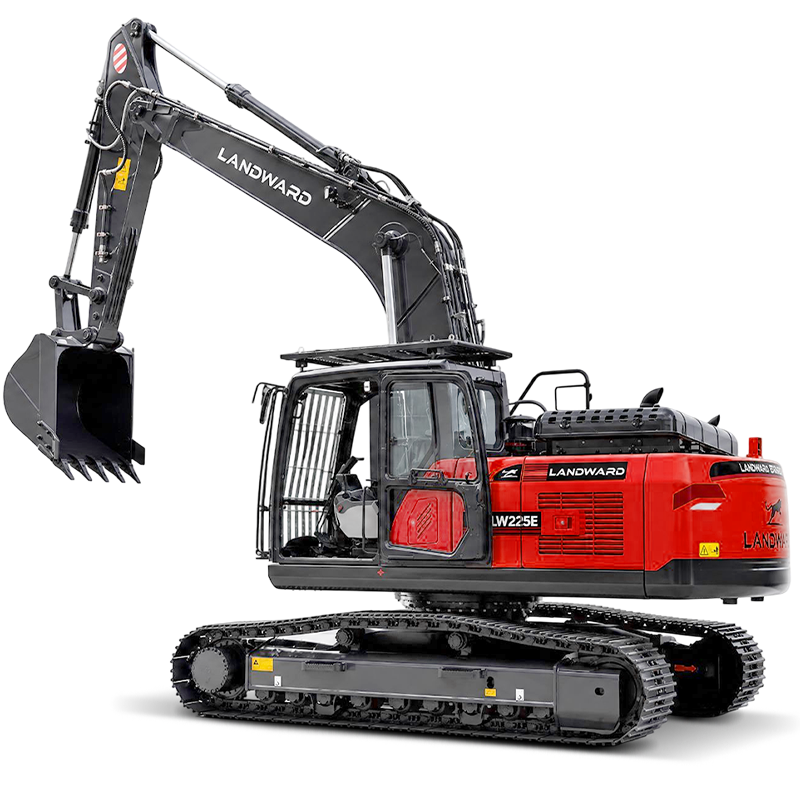

LANDWARD LW225E

Medium Excavator

Operating Weight 22.5 t

Engine Options CUMMINS 6BTA5.9 / ISUZU 6BG1TRP

Rated Power 133 kW / 2000 rpm or 125 kW / 2100 rpm

Overall Width 2980 mm

Request a Quote Download Brochure

SPECIFICATIONS

PRODUCT OVERVIEW

DIMENSIONS

Operating weight

22.5 t

Bucket capacity

1.0 m³

Overall length

9600 mm

Overall width

2980 mm

Height to boom top

3040 mm

Height to cab top

3120 mm

Counterweight ground clearance

1065 mm

Minimum ground clearance

466 mm

Tail turning radius

2720 mm

Track length on ground

3445 mm

Track shoe length

4260 mm

Track gauge

2180 mm

Track shoe width

600 mm

Swing frame width

2700 mm

ENGINE

Engine options

CUMMINS 6BTA5.9 / ISUZU 6BG1TRP

Rated power

133 kW / 125 kW

Rated speed

2000 rpm / 2100 rpm

Battery capacity

420 Ah

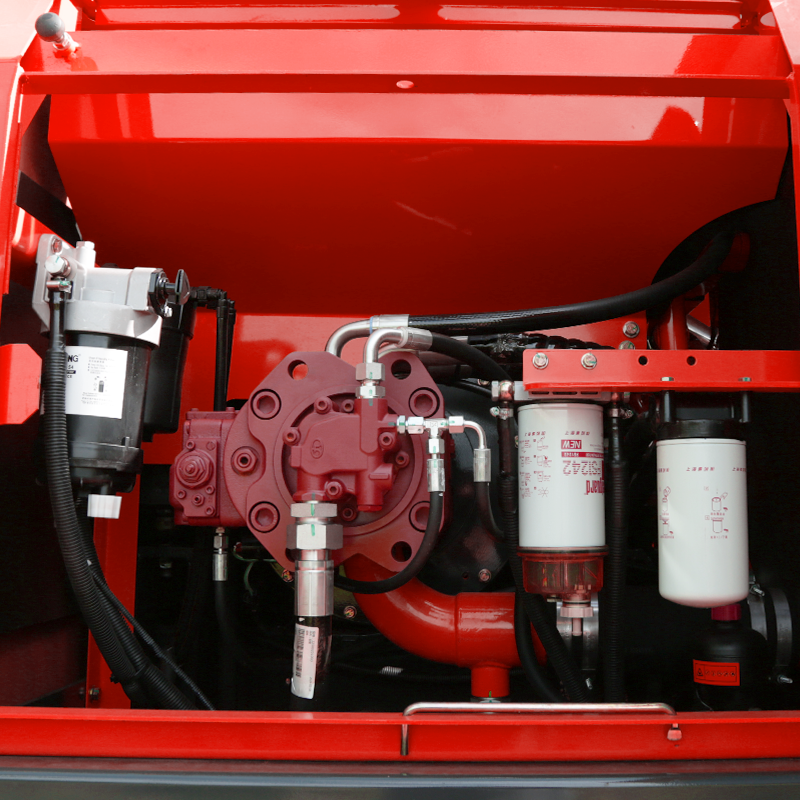

HYDRAULIC SYSTEM

Hydraulic oil tank capacity

246 L

PERFORMANCE

Travel speed

5.2 / 3.5 km/h

Swing speed

11.7 r/min

Gradeability

70%

Bucket digging force

157 kN (ISO)

Ground pressure

46.5 kPa

Arm length

2900 mm

Boom length

5700 mm

WORKING RANGE

Maximum digging height

9275 mm

Maximum dumping height

6560 mm

Maximum digging depth

6515 mm

Maximum vertical wall depth

5915 mm

Maximum digging radius

9865 mm

Maximum reach at ground level

9680 mm

Minimum swing radius

3630 mm

FEATURES & BENEFITS

Twenty-Two-Ton Earthmoving Platform-With a 22

ton operating weight and 1.0 m³ bucket, the LW225E is positioned for infrastructure, road building, bulk excavation, quarry support, and large site-development projects.

Deep Reach for Major Excavation

A 6515 mm digging depth, 9680 mm ground-level reach, and 9865 mm digging radius provide the working range needed for deep cuts, foundations, drainage, and material movement.

Two Engine Options for Markets

The catalog lists CUMMINS 6BTA5.9 and ISUZU 6BG1TRP engine options, allowing buyers to discuss power configuration, local support, and market requirements before confirming an order.

Strong Digging and Loading Range

The listed 157 kN bucket digging force, 9275 mm digging height, and 6560 mm dumping height support demanding excavation, spoil management, and truck-loading operations on larger jobsites.
