XT 10PRO
POWER EFFICIENT BUILT TOUGH READY TO WORK

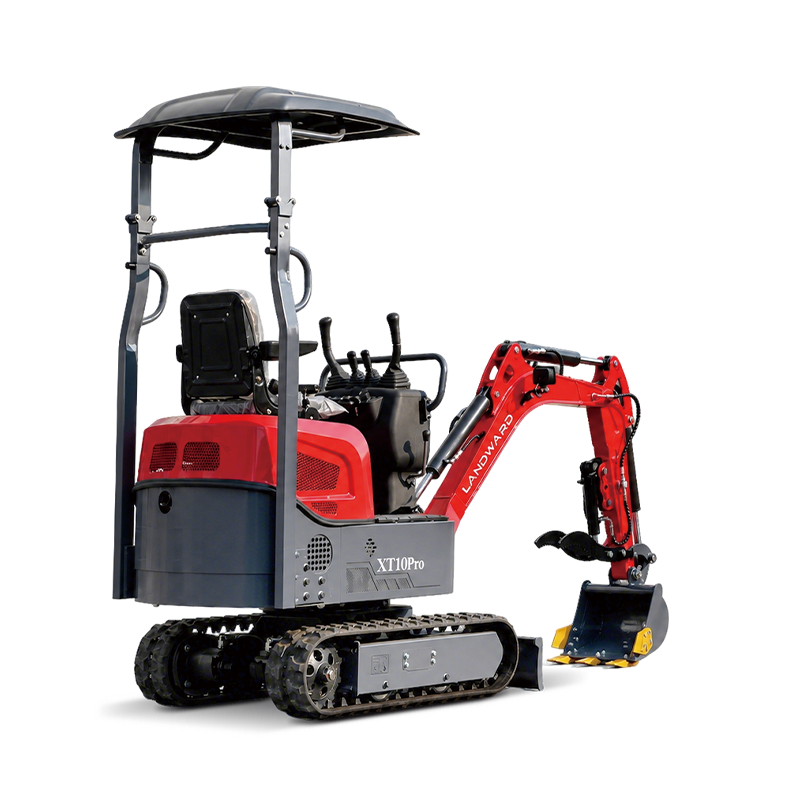

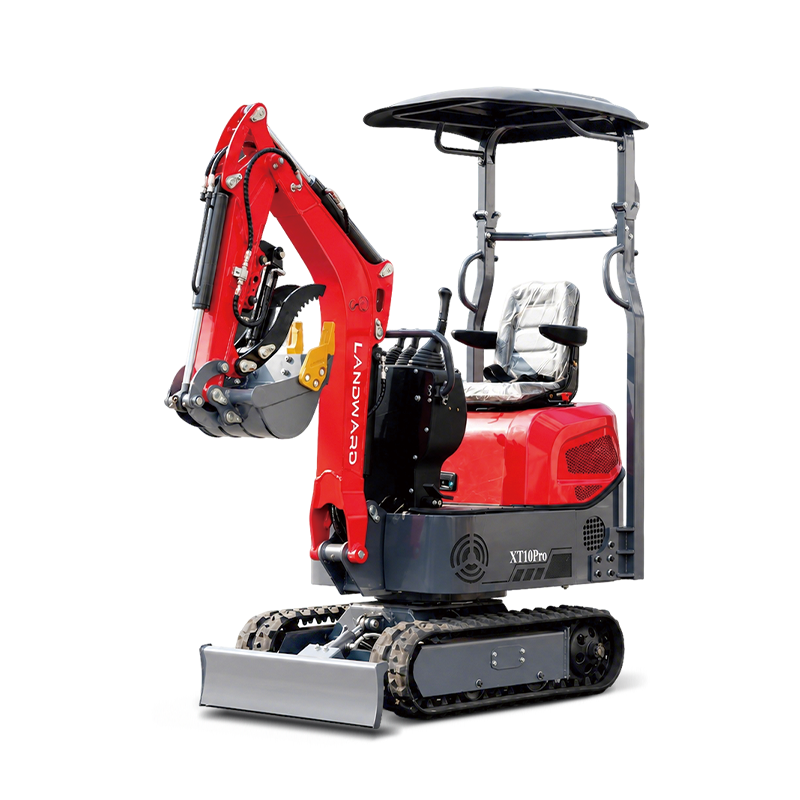

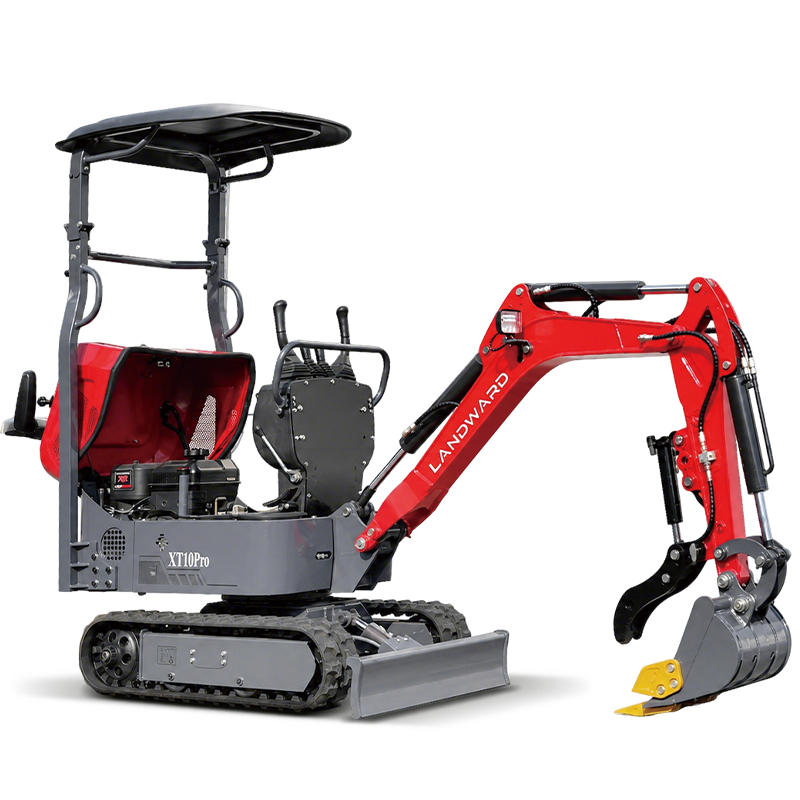

LANDWARD XT10Pro

Mini Excavator

Operating Weight 980 kg
Engine Model KD192FC-1
Rated Power 7 kW
Machine Width 850 mm
SPECIFICATIONS

PRODUCT OVERVIEW

The LANDWARD XT10Pro is a mini excavator developed for buyers who need a practical machine for daily digging, trenching, site preparation, and material handling. Its 980 kg operating weight balances transport convenience, stable crawler performance, and useful excavation capability. The XT10Pro suits contractors, landscaping teams, farm users, and equipment dealers working in real jobsites.

DIMENSIONS
Operating weight
980 kg
Standard bucket capacity
0.02 m³
Length
3010 mm
Width
850 mm
Height
2250 mm
ENGINE
Engine model
KD192FC-1
Rated power
7 kW
Rated speed
3000 rpm
HYDRAULIC SYSTEM
Main pump
Gear Pump
Maximum flow
18 L/min
Hydraulic pressure
18 MPa
WORKING RANGE
Maximum digging depth
1800 mm
Maximum digging height
2600 mm
Maximum dumping height
1890 mm
FEATURES & BENEFITS

MADE FOR EUROPE

With a catalog width of 850 mm, the XT10Pro suits work areas where access and maneuverability matter. Its crawler layout supports stable movement across common soil, garden, utility, and construction conditions while remaining easy to position around obstacles.

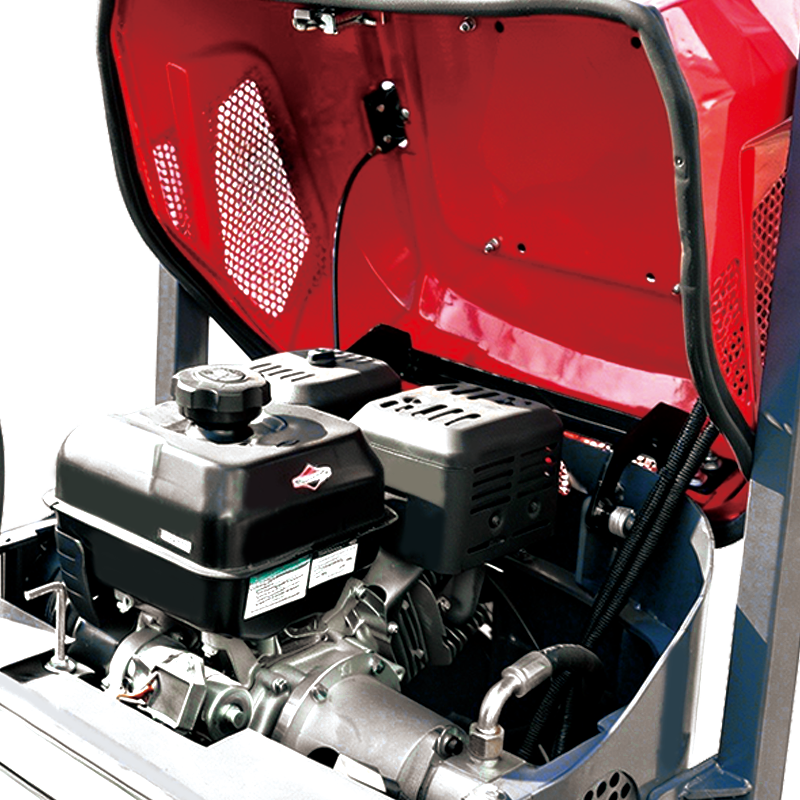

POWERFUL & RELIABLE ENGINE

With a catalog width of 850 mm, the XT10Pro suits work areas where access and maneuverability matter. Its crawler layout supports stable movement across common soil, garden, utility, and construction conditions while remaining easy to position around obstacles.

PREMIUM COMPONENTS

The listed Gear Pump is paired with 18 L/min hydraulic flow and 18 MPa system pressure. This configuration supports controlled boom, arm, bucket, and travel movements for normal excavation work. Confirm optional auxiliary hydraulic requirements before matching specialized attachments.
